Door Lock Hole Opener Kit, Mortise Lock Jig Accurate Positioning Adjustable Design Door Mortising Jig for 1.38-3.94inch Thick Wooden, Copper, Aluminum, Stainless Steel Doors

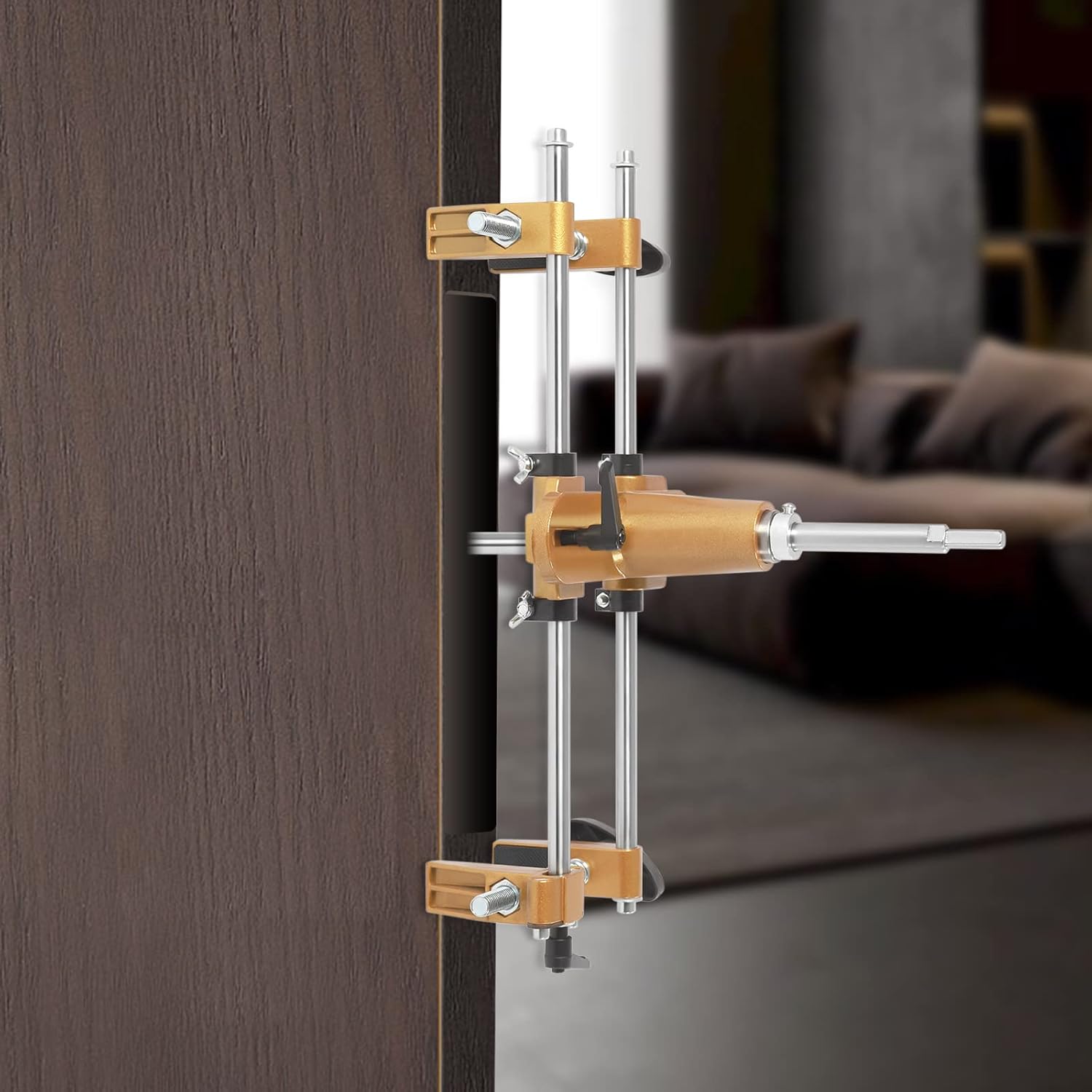

How to UseFirst, remove the locating ring and put it aside, then remove the knife stick from the bracket.Place the knife rod stand on the slide rail workbench and fix the knife rod stand on the workbench by adjusting the screws.Turn the drill handle of the knife bar inwards, Pierce it through the base cloth of the bracket, and then fix the trap.Take out the lock core, mark the height with a pen at the position where the door lock is stalled, and then mark the position of the keyhole with the lock core at the position of the door handle.Install the assembled slotting machine on the door plate, align the knife head of the knife bar with the marked position of the upper and lower lock core, and then adjust the potioning screw to fix the upper and lower position to confirm the working area of the knife bar.Then mark the depth length of the lock core on the back of the cutter, and fix the positioning ring with a hexagon wrench.Finally, install the electric drill, hold the tool holder in your left hand, hold the power tool in your right hand, and push the tool at a constant speed. After drilling to a certain depth, slowly move out, and then move up at a constant speed in your left hand. When you reach the top, move down again at a constant speed, and slowly push the tool until the final completion.Specification Style: ModernMaterial: Aluminum Alloy, Steel, Plastic, Tungsten SteelSurface Treatment: Plastic Spraying, Electroplating, and Chrome PlatingColor: GoldNumber of Items: 1Assembly Required: YesMount Type: Free StandingSuitable Door Thickness: 3.5-10cm/1.38-3.94inchElectric Drill Chuck Diameter: 10mm/0.39inchMaximum Lock Body Distance: UniversalMaximum Slotted Depth: 13cm/5.12inchMaximum Slotted Length: 43cm/16.93inchLength of Ruler: 30cm/11.8inchNet Weight: 4.2kg/9.26lbsGross Weight: 5kg/11.02lbsPackage Size: 50*12.5*22.5cm/19.69*4.92*8.86inchOverall Size(L*H): 43*27cm/16.93*10.63inchStorage Case Size: 49*11*21cm/19.29*4.33*8.27inchPackage Included1* The Main Body of the Slotting Machine1* Storage Case1* Woodworking Flat Groove2* Adjusting Screw Buckles3* Tungsten Steel Blades1* Triangular Chuck Connecting Rod2* 12 #/14# Open-end Wrenches1* Positioning Block4* Set Screws2* 7-shaped Universal Adjustment Screws1* 30cm/11.8inch Steel Ruler

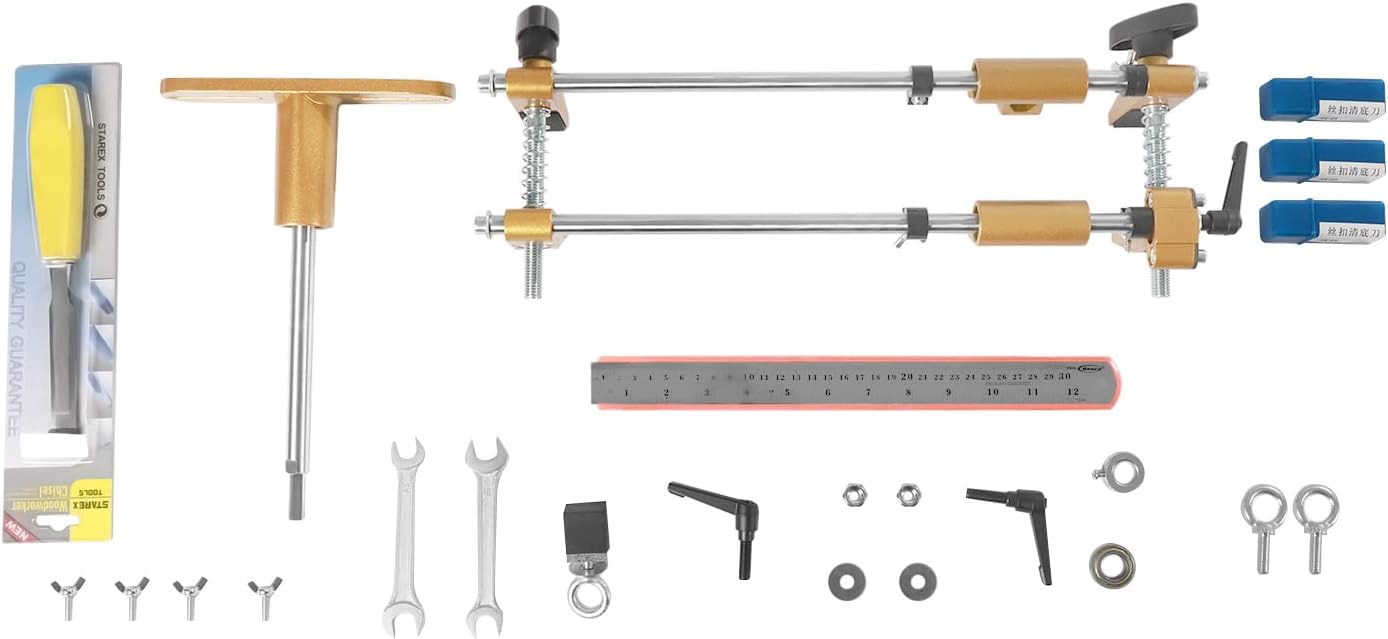

• 【Precise Positioning】- The combination of door lock hole opener kit sturdy locating ring, elastic bearing, locating block, locating screw and scale allows you to locate more accurately and easily, so as to better complete the drilling work.

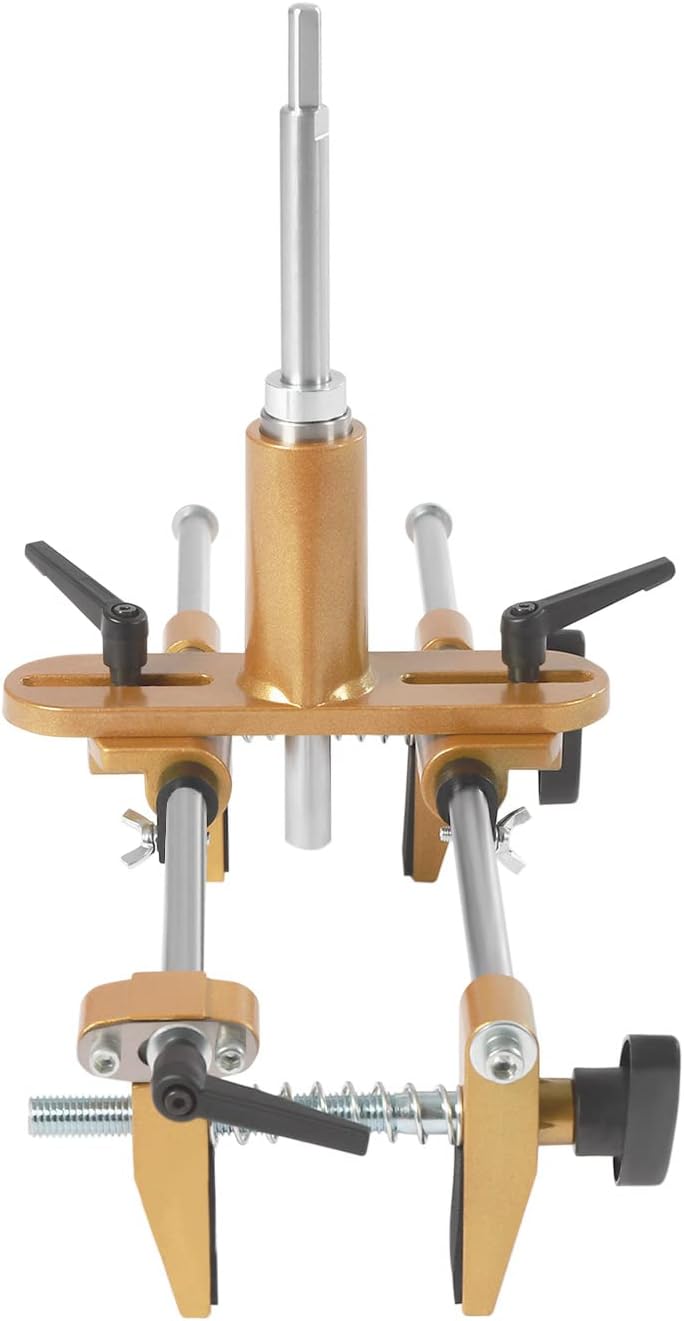

• 【Adjustable Design】- Mortise lock jig With the width adjusting knob, adjusting screw handle and adjusting groove, you can fine-tune the slide to fully meet your needs and provide more convenience for your use.
• 【Superior Performance】- With smooth guide rails, linear bearings, 0.39-inch triangular clamping head and wider adjustment angle, the adjustable design door mortising Jig can effectively maintain the stability and smoothness of the opening process to avoid exceeding the cutting area, and also provides a larger clamping range (1.38-3.94 inches).
• 【Application】- This door lock hole opener kit is suitable for 1.38-3.94inch thick wooden doors, copper and aluminum doors, stainless steel doors, and steel-wood doors. It is very suitable for families, decoration plants, repair plants, etc. to open new lock holes, side holes, eccentric lock holes, magnetic card lock holes, change password locks, fingerprint locks, cut mortices of lock bodies and panels, door hinge slots, etc. It is compatible with all electric drills with a clamping range of 0.39inch, and is an ideal choice for carpenters, maintenance personnel, etc.
• 【Best Sercive】 - If you have any questions, please contact us. We will reply your within 24 hours.
