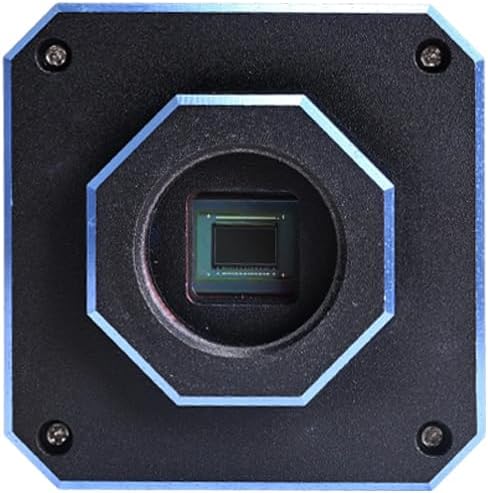

HAYEAR 4K UHD Digital Microscope Camera High Speed 4K 1080P 60fps HDMI Measurement Camera Color CMOS USB Storage Dual HDMI USB3.0 Output Compatible Windows/iOS Support Calibration (HY-6805)

Model :HY-6805Image Sensor size: 1/1.8"Video Output: 4K/1080P FHD (Via HDMI )Pixel Size: 2.0 × 2.0μmResolution: 3840×2160Frame Rate: 4K@60FPS, 1080P@60FPSImage resolution: 3840 × 2160 (8MP)USB Video :3840x2160@60FPS;1920x1080P@60FPSUSB Port :Type-C 3.0Simultaneous output : Supports HDMI and USB synchronous outputDigtical Magnification:15X digital zoom in and zoom outMicrophone :Support external dual channel microphone 3.5mmLens interface: Standard C / CS mountStorage: USB Disk storageLanguage: Chinese/ English,Working Voltage: DC 12V/1000mACompatible system: Windows/ MacSO/ LinuxMeasurement tools: Point spacing measurement, rectangle measurement, Angle measurement, arc measurement, radius circle measurement, diameter circle measurement, three-point fixed circle measurement, concentric circle measurement, center distance measurement, point-circle distance measurement, point-line distance measurement, polygon measurement. Other functions: Support ONE PUSH, Auto/ Manual White Balance, Vertical rotation, horizontal mirroring, monochrome (black and white) image, image comparison, same screen comparison Buid-in Measurment Function, USB Mouse controlPackage Including: 1 x 4K camera1 x USB mounse1 x HDMI cable1 x power supply US plug1 x USB cable1 x calibration scale film

• Measurment: It supports HDMI and USB calibration. Camera builds in HDMI measurement. For USB measurement, customer needs to install the softwarefirst.
• Functions: This camera needs to use with microscope or lenses. It controls by USB mouse, easy to wake up the menu and set different parameters you might need. It has mirro/ flip/ One key white blance/ Same monitor/ Same screen comparison, etc.. It is powerful for education/ PCB inspection/ Jewelry inlay/ biological research/ Precision testing and other industries.
• Simultaneous output: This camera supports HDMI and USB simultaneous output. Both outputs are real time witout lag off. Via HDMI output, it is 4K 60fps. Via USB output, it is 4K 30fps. You can take snap shots or videos the same time via HDMI and USB.
• Additonal: The Ultra Version has an additional USB port for outfit USB devices, like the USB step switch, USB shutter, both for easy image snap shots.
