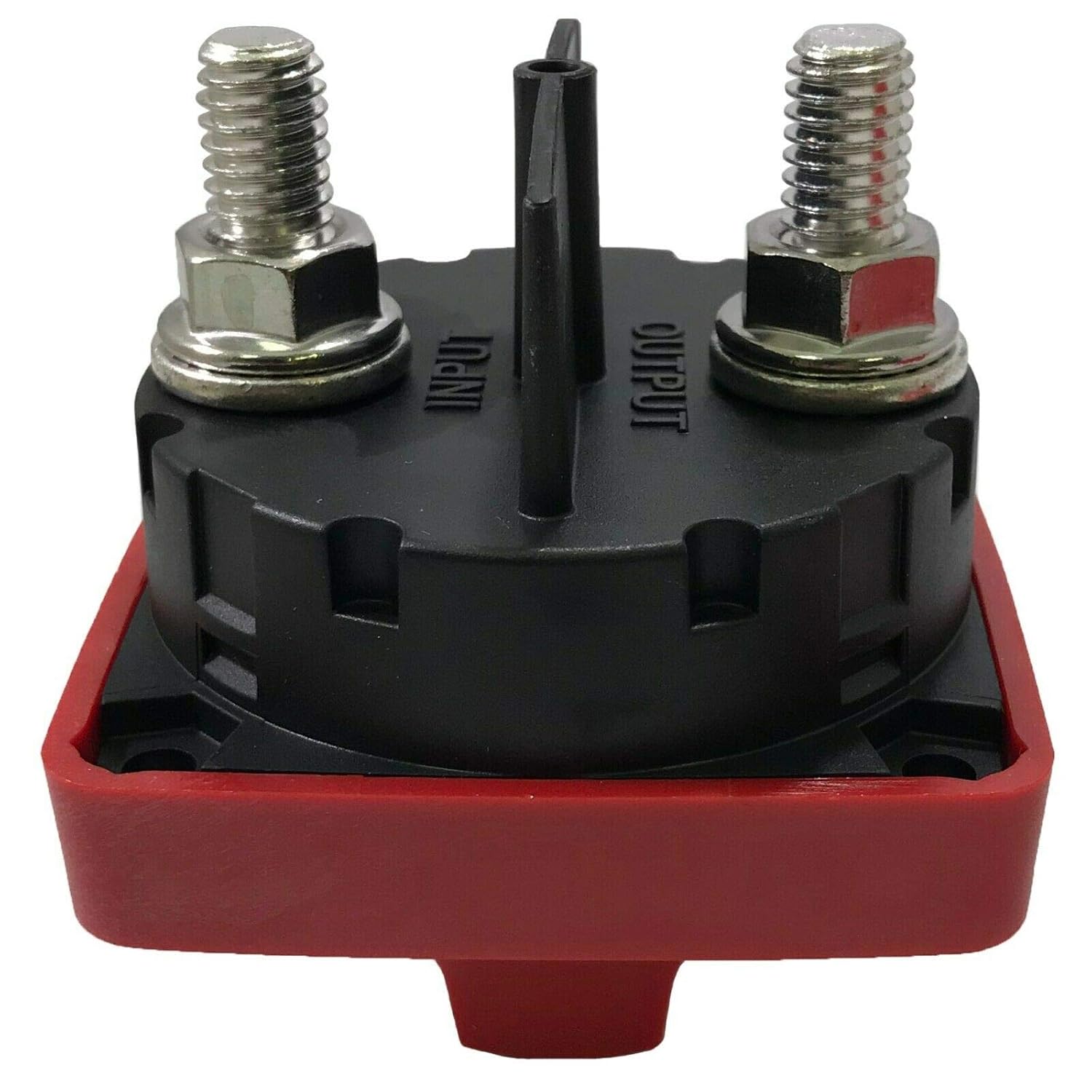

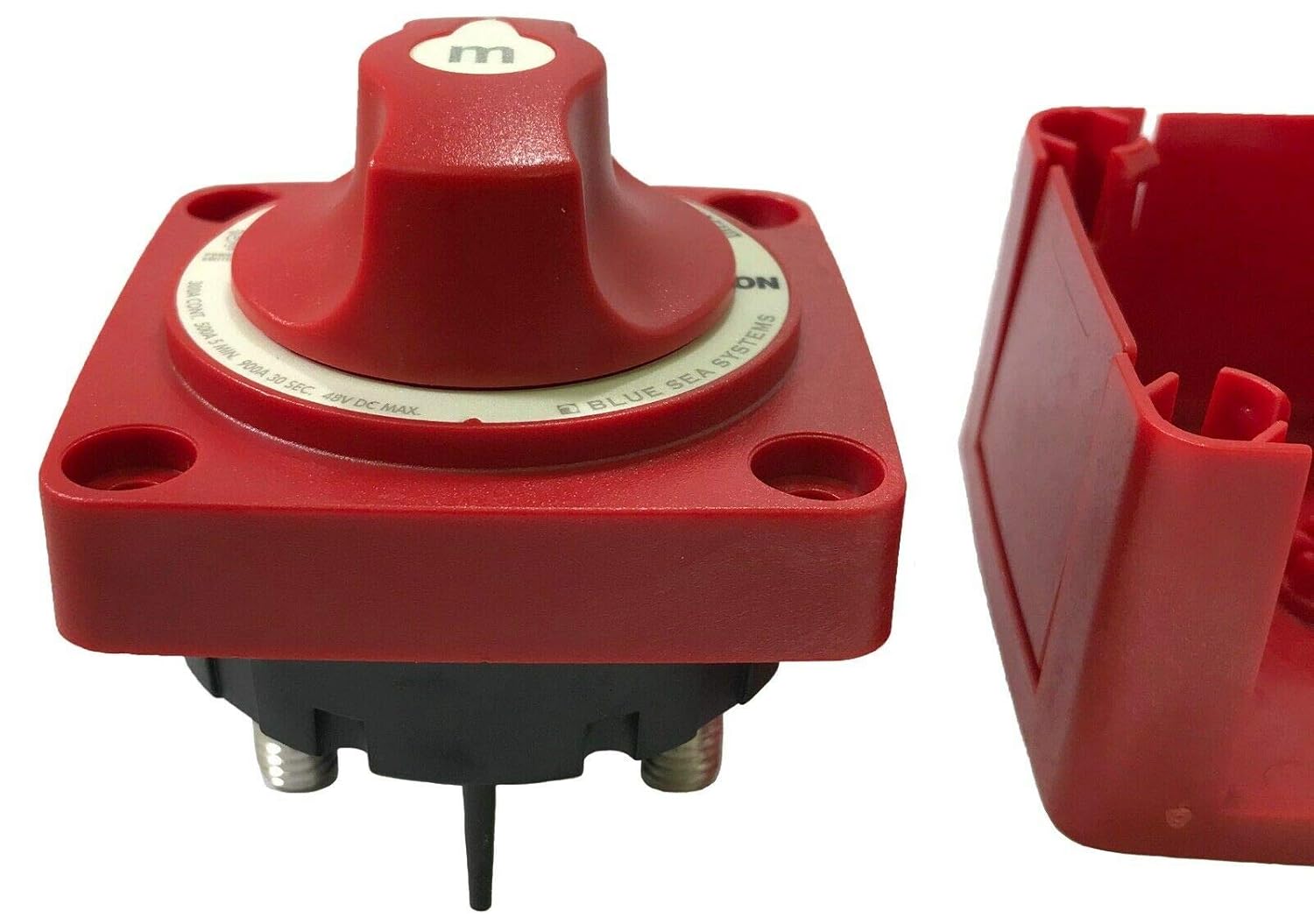

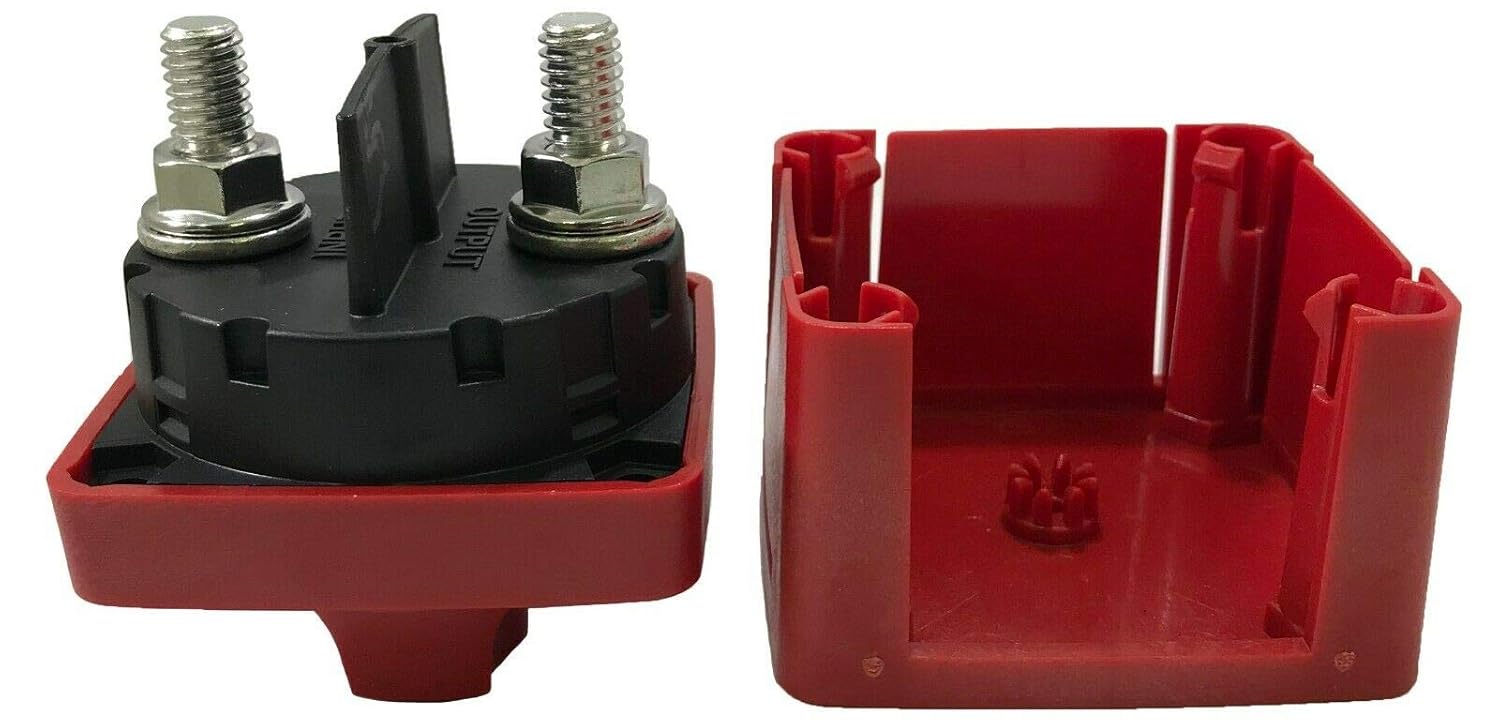

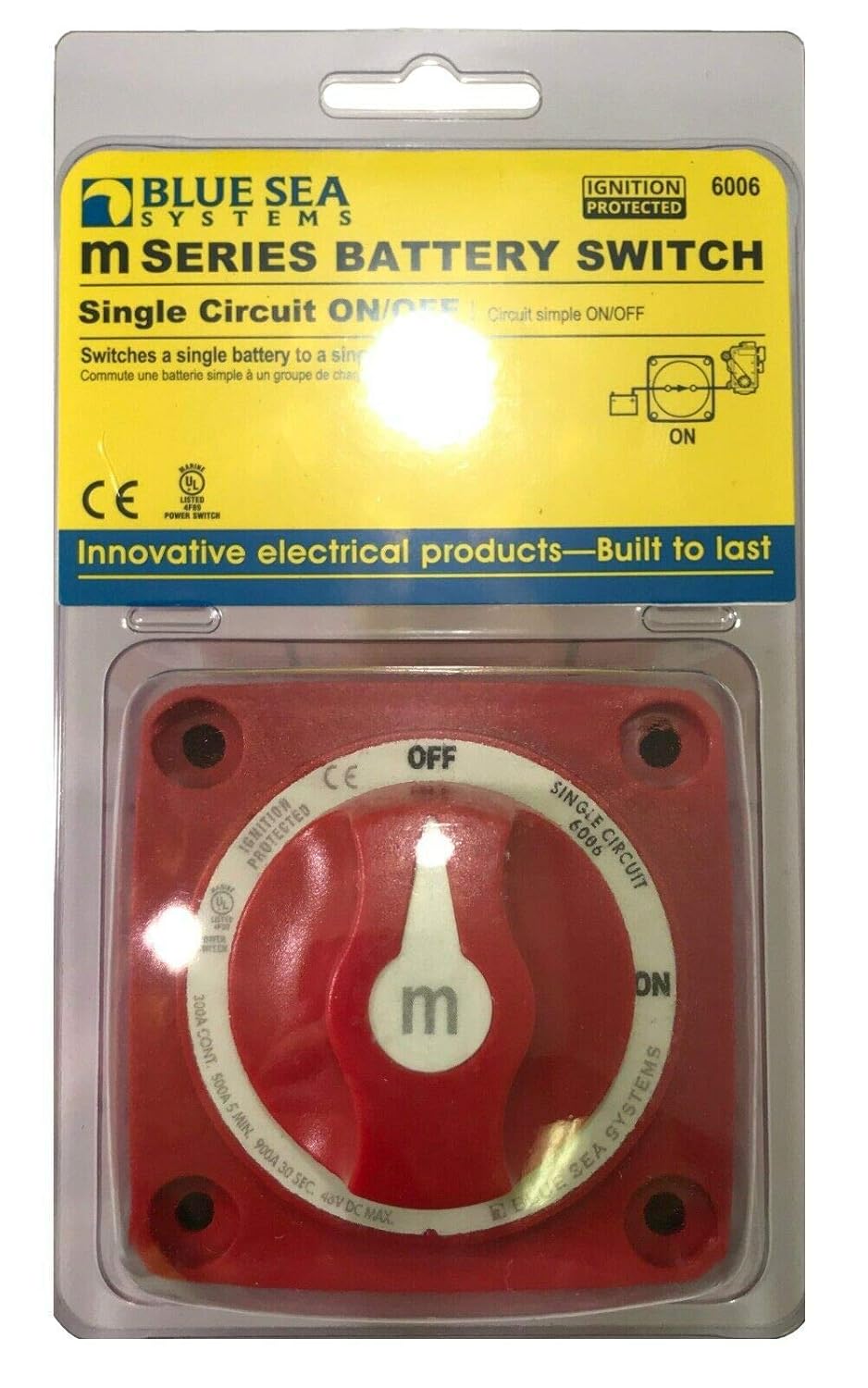

Sherco-Auto Blue Sea 6006 M-Series Master Battery Switch Single Power Cut On/Off Marine Boat - Made in USA
5.0 (150 items)
Limited Time SaleUS$28.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210363449 | Release Date | 2026/04/02 | List Price | US$18.79 | Model Number | 210363449 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Sherco Automotive & Marine Supplies Part Number : BSEA-6006 Blue Sea 6006 M-Series Master Battery Switch Single Power Cut On/Off Marine Boat Specifications Switch Type - Single Circuit ON-OFF Color - Red Switch Positions - 2 Battery Combine - No Alternator Field Disconnect Alternator Field Disconnect protects the diodes in the alternator in the event of the switch being switched to the OFF position while the engine is running. if the AFD is not used to protect the alternator, an LED can be connected to the AFD terminals to indicate when the battery switch is in any position but OFF. - No Maximum Voltage - 48V DC Stud Size - 3/8" Terminal Stud Torque - 120 in-lb (13.56 Nm) Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. - 300A Intermittent Rating The maximum amount of current a switch is designed to carry for a minimum of a designated period of time. - 500A (5 min) Cranking Rating 30 sec Normally associated with 'cranking current' which is the current required by the starter circuit prior to engine starting. The cranking current varies significantly during the starting cycle. Initially, there is a large surge of current required to overcome the inertia and compression of the engine. This surge can be two to four times the average cranking current. Once the engine is turning there are peaks and valleys as the pistons go through the compression and exhaust cycles. The cranking current rating is used for sizing batteries, cables, and battery switches. - 900A Battery Inputs - 1 Cable Clearance For 4/0 AWG Cables - 1.12in (28.45 mm) Cable Size to Meet Ratings - 4/0 AWG (120mm²) Mounting Holes - Accept #10 Screw Stud Material - Tinned Copper Stud Torque - 120 in-lb (13.56 Nm) Terminal Stud Size - 3/8" - 16 (M10) Weight - 0.65lb (0.29 kg)
- Blue Sea 6006 M-Series Master Battery Switch Single Power Cut On/Off Marine Boat
- Battery switches isolate the potentially destructive energy in the battery banks when the boat is not in use or during emergencies.
- Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. - 300A
- Ignition protected—safe for installation aboard gasoline powered boats.
- Switches a single battery to a single load group.
| Color | Red |
|---|---|
| Wattage | 14400 watts |
| Terminal | Marine |
| Brand Name | Sherco-Auto |
| Unit Count | 1 Count |
| Switch Type | Single Circuit On-off |
| Circuit Type | series |
| Contact Type | Does Not Apply |
| Manufacturer | Sherco-Auto |
| Actuator Type | Hinge Lever |
| Material Type | Copper |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Current Rating | 300 Amps |
| Operation Mode | ON-OFF |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 48 Volts |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
