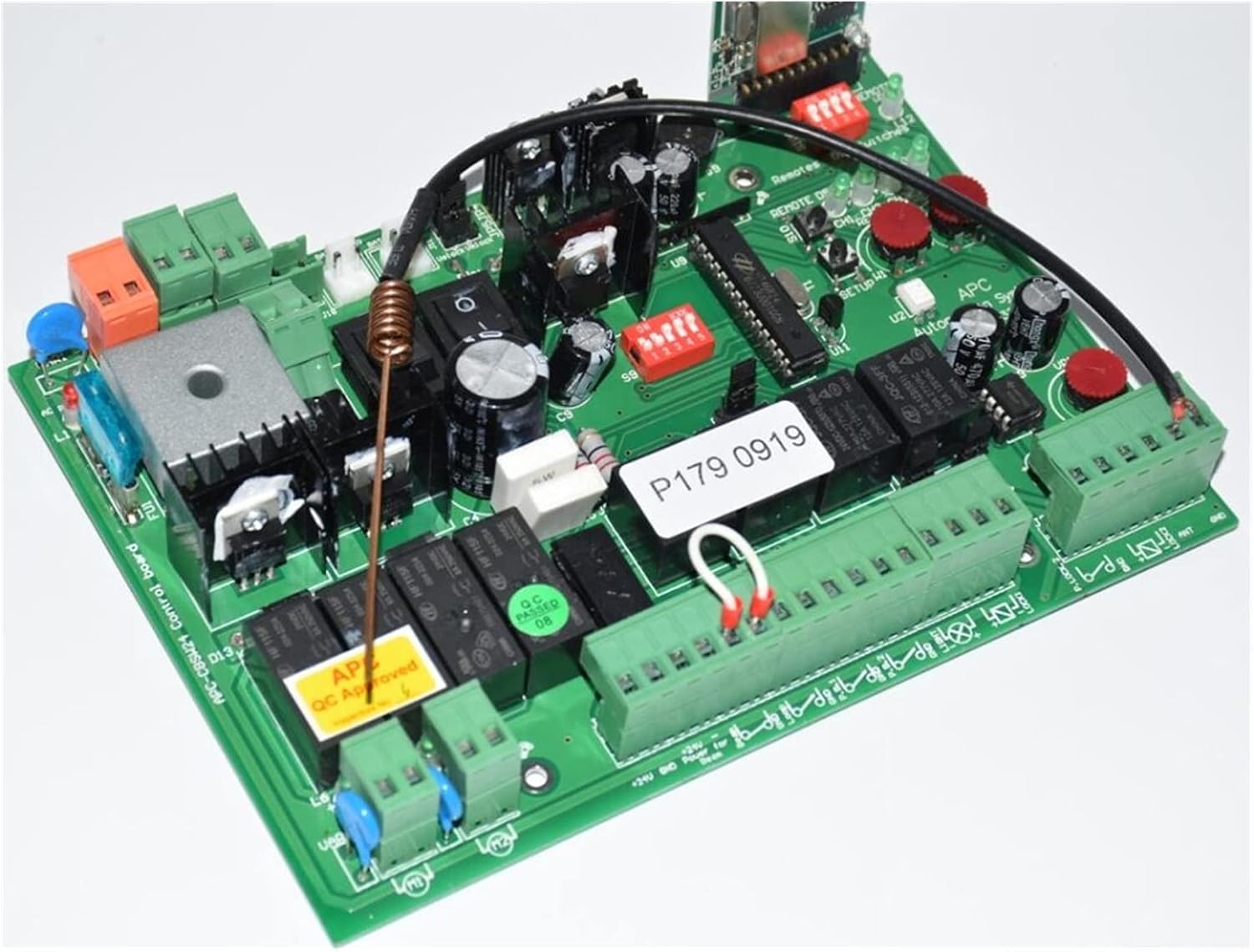

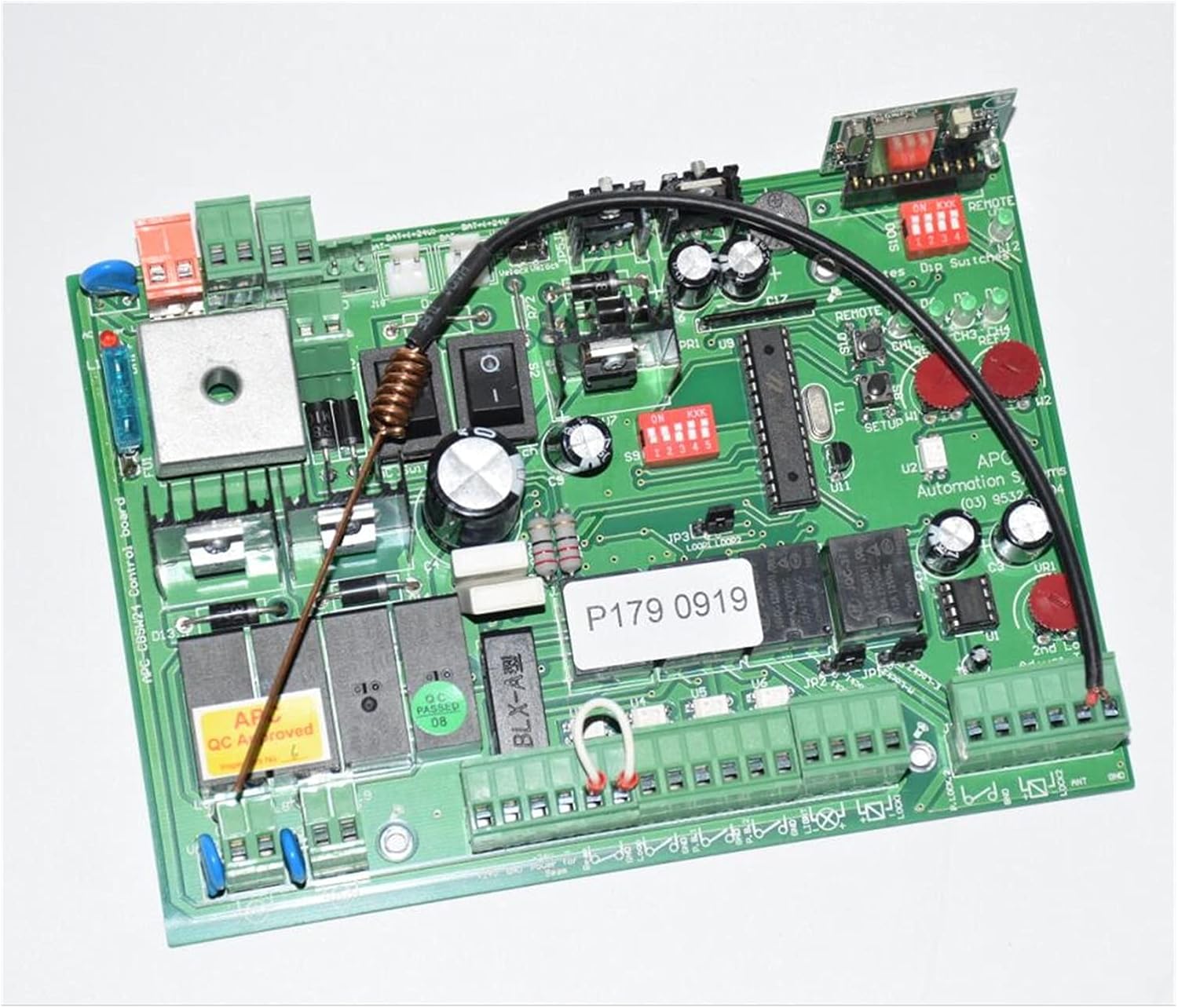

Smart Home Devices 24VDC Automatic Double Arms Swing Gate Opener Control Panel PCB Circuit Board Motor Card Motherboard Controller (Color : Kit 2) (Kit 1)

Important notes: This board is working only with 24VDC swing?gate motor, not for other motors; manual only sent by email, not coming with the package; battery inside of the remote control not included; this board only works with our remote controls, not compatible with other brands; Kit contents: kit 1 includes a board only,no remote control; kit 2 includes a board with1remote controls; kit 3 includes a board with2remote controls; kit 4 includes a board with3remote controls; kit 5 includes a board with4remote controls; kit 6 includes a board with8remote controls; Features: - 4 Channels built into the control board to allow the following: * Channel 1 is for operating a double gate * Channel 2 is for operating pedestrian function on a double gate system (opening one gate only) OR operating a single gate system * Channel 3 is for operating party mode (to cancel the auto close for a particular cycle) * Channel 4 is for operating a second lock (this can operate an extra lock fitted to a stand alone pedestrian gate) - Overcurrent adjustment trimmers allows for further adjustment to suit most gate sizes and gate weights. - Adjustable auto close timer allowing the user to set auto close up to 3 minutes. - The automatic closing can be cancelled using button number 3 when expecting a visitor to arrive through the party mode function. - An Electric Lock (power on to unlock) or a Magnetic lock (power off to unlock) can be connected to the control board. - Connection of a DC light using up to 20W, this output is active during the opening and will stay active until the gates are closed. - Accessories Constant Output: Constant 24V DC output for accessories. - Accessories Switching Output: 24V DC output only on the closing cycle to conserve power. - PE Safety Sensor connection input: Energy star output, with zero consumption on standby to conserve battery power. - Loop Input

• - 4 Channels built into the control board to allow the following:
• * Channel 1 is for operating a double gate
• * Channel 2 is for operating pedestrian function on a double gate system (opening one gate only) OR operating a single gate system
• * Chan
