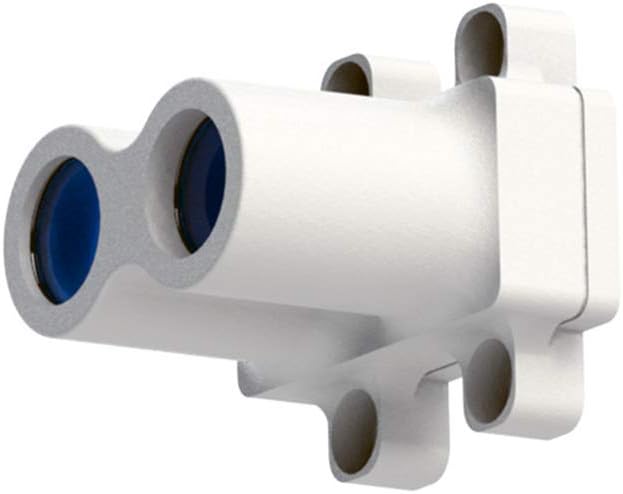

Taidacent 40M Pulse TOF Distance Sensor Single-Point Long Range Laser Distance Sensor Outdoor Traffic Car Collision Avoidance Traffic Radar Sensor (RS-232, White)

The advantage of the DeTOF solution is that it inherits the advantages of the traditional pulse TOF and the traditional phase TOF, and combines them organically, so that the LP series laser ranging radar has both accuracy and speed, and performs well outdoors. The LP series laser ranging radar can be widely used in industrial measurement, UAV fixed obstacle avoidance, robot obstacle avoidance, intelligent transportation, automobile collision avoidance, security monitoring and other scenarios. Measuring distance (based on the back end of the ranging radar):0.05-40m (@ 90%) Distance resolution 1.5cm Distance absolute accuracy <3cm (@> 50%), <5cm (@ 15% -50%), <7cm (@ <15%) Measuring frequency 1-4500Hz adjustable Laser beam divergence angle 9.3mrad (0.53) Receiving field of view 39.4mrad (2.26) Laser beam wavelength 905nm Protection class IP65 / 1P67 Weight 35g (with connection cable) Dimensions 40 * 40 * 45mm Working temperature 40 ℃ to + 85 ℃ The output interface of the LP series laser ranging radar is a LVTTL level serial port, which can be directly connected to the serial port pins of the microcontroller and ARM, but cannot be directly connected to the RS232 level serial port to a PC. LVTTL level is 3.3V high and 0V low. Connection and use (Take LVTTL interface as an example) 1. Connect the USB to TTL (LVTTL) module to the PC and install the driver for the USB to serial port. 2. Connect the LP series laser ranging radar to the USB to TTL (LVTTL) module. 3. Open the evaluation software LinePlot installed on the PC, select the corresponding serial port and set the communication parameters, and then open the serial port. 4. Click “Start Measurement”, LinePlot software will display the corresponding ranging data, and users can perform related operations such as viewing / saving according to their needs.

• Measuring distance (based on the back end of the ranging radar) 0.05-40m (@ 90%)
• Measuring frequency 1-4500Hz adjustable
• Laser beam divergence angle 9.3mrad (0.53)
• Receiving field of view 39.4mrad (2.26)
• widely used in industrial measurement, UAV fixed obstacle avoidance, robot obstacle avoidance, intelligent transportation, automobile collision avoidance, security monitoring and other scenarios.
